1 m² Molecular Distillation Device
This precision separation instrument is designed for laboratory and small-scale production. Utilizing the principle of molecular mean free path differences, it achieves efficient liquid-liquid separation in a high-vacuum environment, particularly suited for purifying high-boiling-point, heat-sensitive, and easily oxidized substances. Featuring a compact design and intelligent controls, this equipment delivers exceptional separation efficiency in food, pharmaceutical, and chemical industries.
Structure

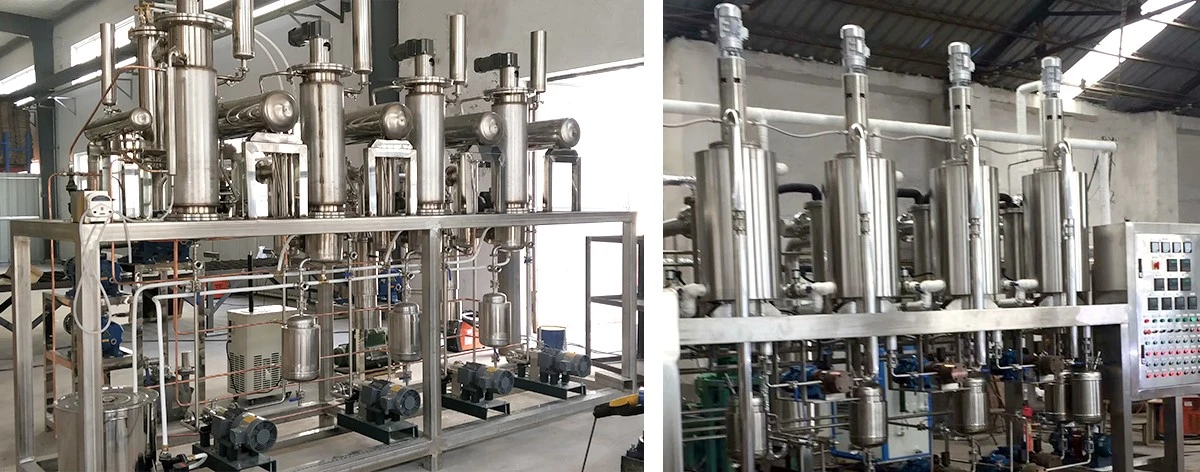

1 m2 molecular distillation device has one stage of wipe film evaporator, at least one stage of short path distillation(SPD). The more stages, the more thorough the separation and the higher the purity of the final product.Feeding unit, vacuum unit, cooling unit, heating unit, and electric control unit are also in the system.
Working Principle
Under high vacuum, materials flow along the heated plate. Light molecules condense on the cooling surface due to their longer mean free path, while heavy molecules return along the heating surface. Multi-stage separation and parameter adjustments (temperature, vacuum) enable efficient purification of target components.
Feature
Core Technical Features
Low-Temperature, High-Efficiency Separation
Operates at temperatures far below material boiling points (vacuum levels as low as ≤10 Pa), minimizing thermal degradation of sensitive components.
01
Short Heating Duration
Materials remain on heated surfaces for only seconds, reducing thermal damage risks.
02
High-Precision Separation
Separates light and heavy components based on molecular mean free path differences, achieving purity levels exceeding 90%.
03
Customizable Options
Material choices (SS304/SS316 stainless steel), explosion-proof design, and voltage adaptability (220V/380V).
04
Compact Lab-Grade Design
Space-saving footprint with integrated vacuum, thermal oil heating, and cooling modules for user-friendly operation.
05
Model of molecular distillation device
Note:
1) The capacity of SPD is different according to materials, for example, CBD distillation will be much more difficult than other materials;
2) User can choose material of the device between stainless steel and glass.
Applications
Applications
Pharmaceuticals
Purification of natural vitamins A/E, concentration of fish oil DHA/EPA, drug intermediate refinement.
01
Food Industry
Monoglyceride preparation, essential oil deacidification, high-purity alcohol distillation.
02
Fine Chemicals
Aromatic oil purification, polymer desolventization, heat-sensitive compound separation.
03
Research
Novel material synthesis, small-batch separation process development.
04
Advantages
Key Advantages
Modular Design
Supports multi-stage configurations for enhanced separation efficiency and purity.
Comprehensive Support:
Process development assistance, equipment commissioning, and technical training.
Safety & Sustainability
Fully enclosed system with zero pollutant emissions; optional explosion-proof design.
