Introduction
The extraction process does not change the chemical composition of the extracted substance, and it can be used for the extraction and separation of most elements. Then, by evaporating the solvent used in the extraction process, most of the desired ingredients can be obtained.
Our team has been devoted to plant extraction for many years and has accumulated a lot of experience; we can provide customers with a variety of services such as experimental research, customized equipment production, overseas installation and commissioning, personnel training, after-sales service and other services.
Feature
This extraction and concentration machine can be used with different extraction solvent, such as water, ethanol, methyl alcohol, acetone. It is composed with multifunctional extractor, condenser, single effective evaporator, filter, pipes system, control cabinet, vacuum system, etc.
1) With extraction, concentration and solvent recovery function;
2) High efficiency, easy operation and high degree of automation;
3) Good tightness to ensure no "escaping", no "overflowing", no "leaking" or other problems during the whole extraction and evaporation process;
4) Low energy consumption, it can save more than 30% consumption.
Model
|
Item/Model |
RH-500 |
RH-1000 |
RH-2000 |
RH-3000 |
RH-5000 |
RH-6000 |
|
Volume of extractor(L) |
500 |
1000 |
2000 |
3000 |
5000 |
6000 |
|
Jacket pressure(bar) |
3 bar |
|||||
|
Extractor working pressure(bar) |
Normal pressure |
|||||
|
Evaporation capacity of single effective evaporator (L/H) |
150 |
300 |
750 |
1000 |
1500 |
2000 |
|
Steam requirement(kg/H) |
225 |
450 |
1000 |
1500 |
2400 |
3000 |
|
Cooling water requirement(T/H) |
8 |
15 |
35 |
45 |
60 |
70 |
|
OD of Slag discharge door(mm) |
800 |
800 |
800 |
1000 |
1000 |
1200 |
|
Note |
It is reference information above |
|||||
Application
The system can be used in a variety of process operations such as normal pressure, water decoction, wet immersion, heat reflux, circulation infiltration, aromatic oil extraction and organic solvent recovery in the industries of medicine, health care, pigments, food and beverage, animals and plants, and chemicals; especially suitable for hospitals, pharmaceutical factories, scientific research units to develop new products and small batch production.

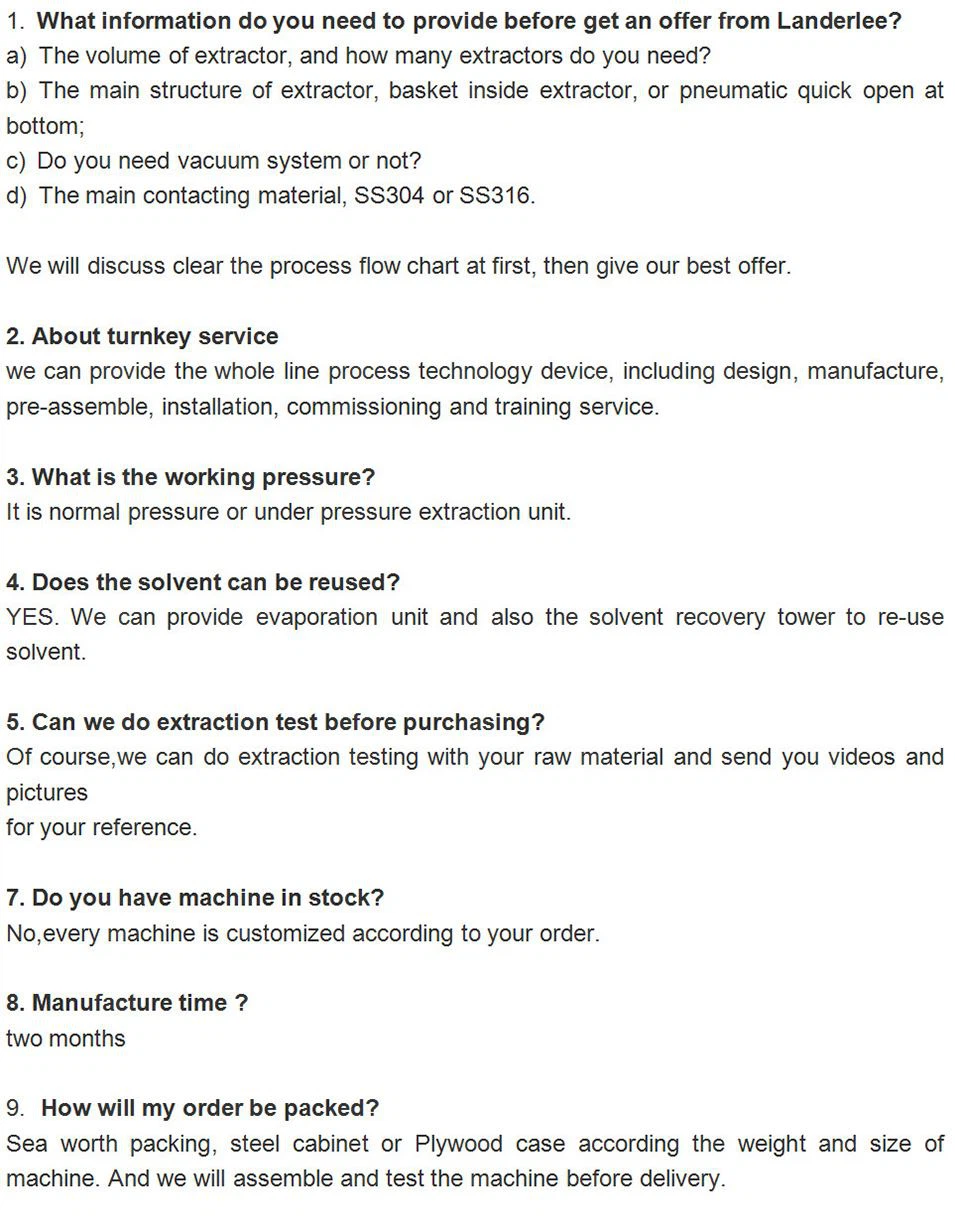

FAQ
