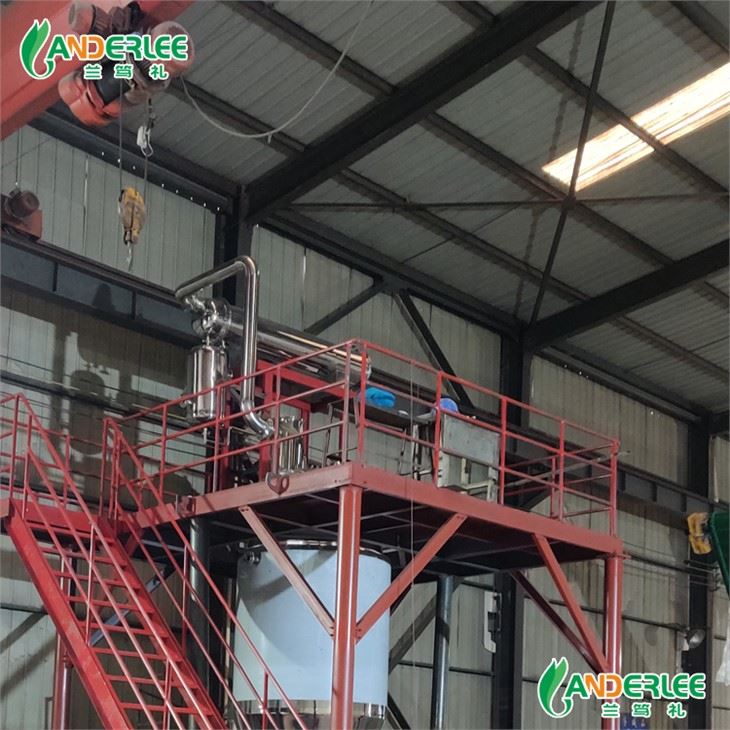

Essential Oil Distillation Equipment Rotary Vacuum Evaporator

Since the establishment, our company has always practiced the concept of science-led development, accumulated experience in the ultrasonic ethanol extraction device, lycopene SCFE equipment, lab centrifuge machine field, so as to provide users with high-quality and reliable products. Our company's corporate culture has certain practical value for our company to improve its competitive advantage and occupy the leading position in the market. We gain the favor of customers with high-quality professional products and good production efficiency, and achieve a win-win situation where customers and our company can obtain mutual benefits As long as you order our company's products, no matter where you are, we will dispatch professional personnel to serve you in time. Your satisfaction is our promise! Perfect after-sales service is our eternal pursuit, and it is our wish to cooperate with you!





Water extraction is one of the oldest and most widely adopted techniques for obtaining volatile, water-stable botanical compounds that are not soluble-or only sparingly soluble-in water. By co-distilling plant material with water, volatile elements are carried over with the steam and later isolated via condensation. This approach is both economical and practical, making it a preferred method across numerous industries.





1.Key components of industrial-grade water extraction systems include:: Extractor, condenser, separator, product tank, vacuum system, steam boiler.

2.Supporting systems consist of coolers, filters, and piping networks.

3.All parts that come into contact with plant material are constructed from food-grade stainless steel (SS304 or SS316), ensuring compliance with hygiene standards and resistance to corrosion.





1.High-Efficiency Heating: Combines internal direct heating with jacket-style indirect heating for superior thermal efficiency.

2.Easy Residue Removal: Equipped with a wide-diameter discharge port at the bottom of the extractor for fast and thorough cleaning.

3.Vacuum Operation: Functions under low-temperature and low-pressure conditions to protect heat-sensitive compounds from degradation.





1.Precision-engineered piping reduces steam loss and improves essential oil recovery.

2.Modular design allows the system to be adapted for a variety of raw materials and production scales.





1.Compliant: Meets strict hygiene and safety requirements for food and pharmaceutical applications.

2.Adaptable: Available in multiple sizes and configurations, from R&D to full production scale, with adjustable operational parameters.

3.Service-Friendly: Open structure design simplifies cleaning, inspection, and part replacement, reducing downtime and maintenance costs.



Capacity	500L to 5000L	Temperature	Less than 100℃, automatic control.
Pressure	Less than 2bar	Material	SS304/SS316
Thickness of extractor	From 3mm to 12mm	Structure of extractor	Three layers vertical structure
Unloading way	Pneumatic quick open,automatic unloading	Vacuum	Water ring vacuum pump





Model	SD500	SD1000	SD2000	SD3000	SD5000
Total Volume(L)	600	1200	2300	3300	5400
Pressure (bar)	1) Inside normal pressure 2) Jacket is 3bar
OD of manhole(mm)	300	400	400	400	600
OD of outlet door(mm)	400	600	800	800	1000
Heating area(m2)	2.4	3.1	4.2	5.5	7.1
Cooling area(m2)	3	5	5	8	10
Filtration area(m2)	0.25	0.25	0.25	0.25	0.5
Steam required(kg/H)	245	325	345	645	720
Note	The information above is reference date









Industrial water extraction systems use steam distillation to extract essential oils from a range of botanical sources-including roses, lavender, rosemary, mugwort, thyme, chrysanthemums, and peppermint-from their flowers, leaves, and stems.







Hot Tags: Commercial Water Extraction Equipment, China, manufacturers, suppliers, factory, customized, ethanol heating extraction machine, centrifugal filtration equipment, cannabis supercritical CO2 extraction device, single effective evaporation device, milk centrifuge machine, astaxanthin SCFE device

The Essential Oil Distillation Equipment Rotary Vacuum Evaporator we offer are all designed and produced by our professionals, and can be said to be the most cost-effective products in the market. We hope that our employees will continue to learn and progress in their work, strive to improve their self-quality and cultivation, and do their job better. Pioneering, innovative, and the spirit of seeking truth, being pragmatic, maintaining the stability of quality, and pursuing excellence have always been the principles of our company.
